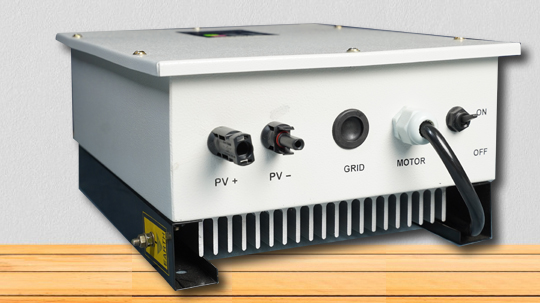

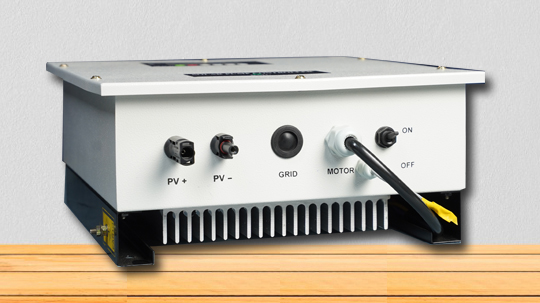

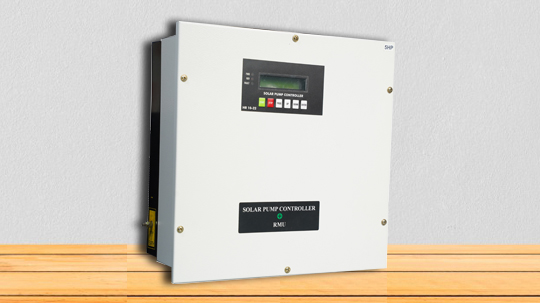

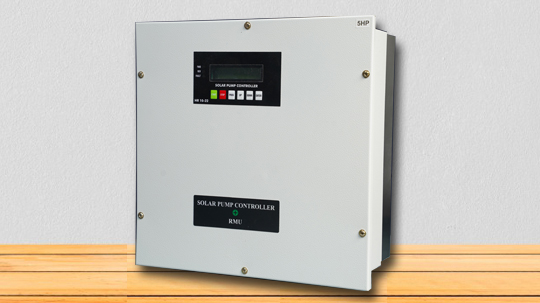

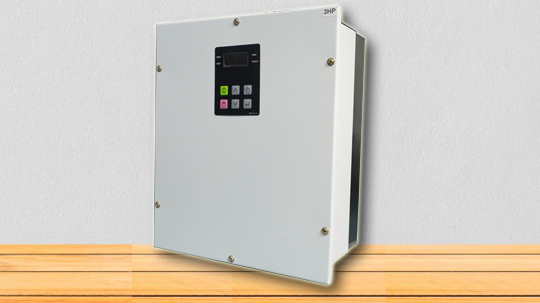

Most of the energy produced around the world is used to operate pumps. Compared to diesel generator pumps, the TEXTRO solar pump drive is environmentally friendly, with a long lifetime and low maintenance costs. It is independent from the grid and produces no pollution or noise. Typical applications are irrigation, community water supply, and agriculture.
The drive has many solar-specific and pump control functions, such as built-in maximum power point tracking. Our drive ensures you to get the best output power possible from your solar panel and it maximizes the performance of your pump along the day while the automatic start and stop with solar radiation can save money and fuel during daylight hours.
APPLICABLE MOTOR PUMP | .75kW/1HP/200V | 1.5kW/2HP/200V | 2.2kW/3HP/200V | 3.7kW/5HP/200V |
---|---|---|---|---|
VFD CAPACITIY | .75kW/1HP/200V | 1.5kW/2HP/200V | 2.2kW/3HP/200V | 3.7kW/5HP/200V |
AMPS | 4A | 8A | 12A | 16A |
OPERATING DC VOLTAGE | 250-380VDC | |||
RECOMMANDED PV RATING | 350VDC | |||
OUTPUT VOLTAGE | 200-220VAC | |||
OUTPUT FREQUENCY | 0-50/60 Hz | |||
AMBIENT TEMPERATURE RANGE | 0-55°C | |||
PROTECTION | OVER LOAD,OVER TEMPERATURE,OVER VOLTAGE,UNDER VOLTAGE |
APPLICABLE MOTOR PUMP | 2.2kW/3HP/400V | 3kW/5HP/400V | 5kW/7.5HP/400V | 7.5kW/10HP/400V |
---|---|---|---|---|
VFD CAPACITIY | 2.2kW/3HP/400V | 3kW/5HP/400V | 5kW/7.5HP/400V | 7.5kW/10HP/400V |
AMPS | 7A | 10A | 13A | 18A |
OPERATING DC VOLTAGE | 500-800VDC | |||
RECOMMANDED PV RATING | 700VDC | |||
OUTPUT VOLTAGE | 400-440VAC | |||
OUTPUT FREQUENCY | 0-60 Hz | |||
AMBIENT TEMPERATURE RANGE | 0-70°C | |||
PROTECTION | OVER LOAD,OVER TEMPERATURE,OVER VOLTAGE,UNDER VOLTAGE |
